Manufacturing Process of Forged Parts

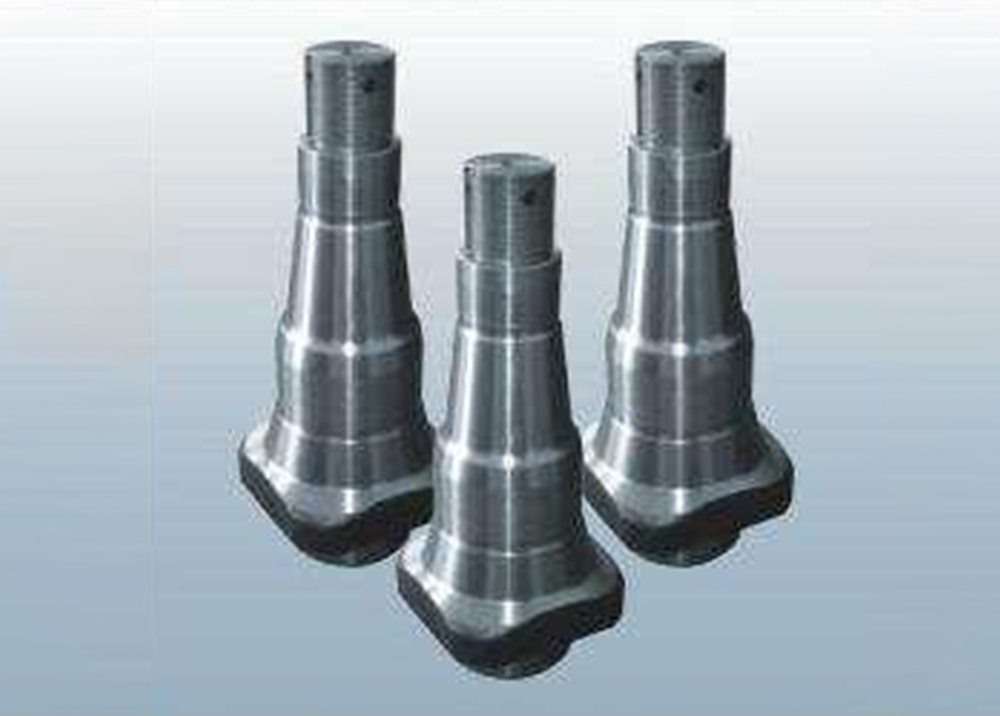

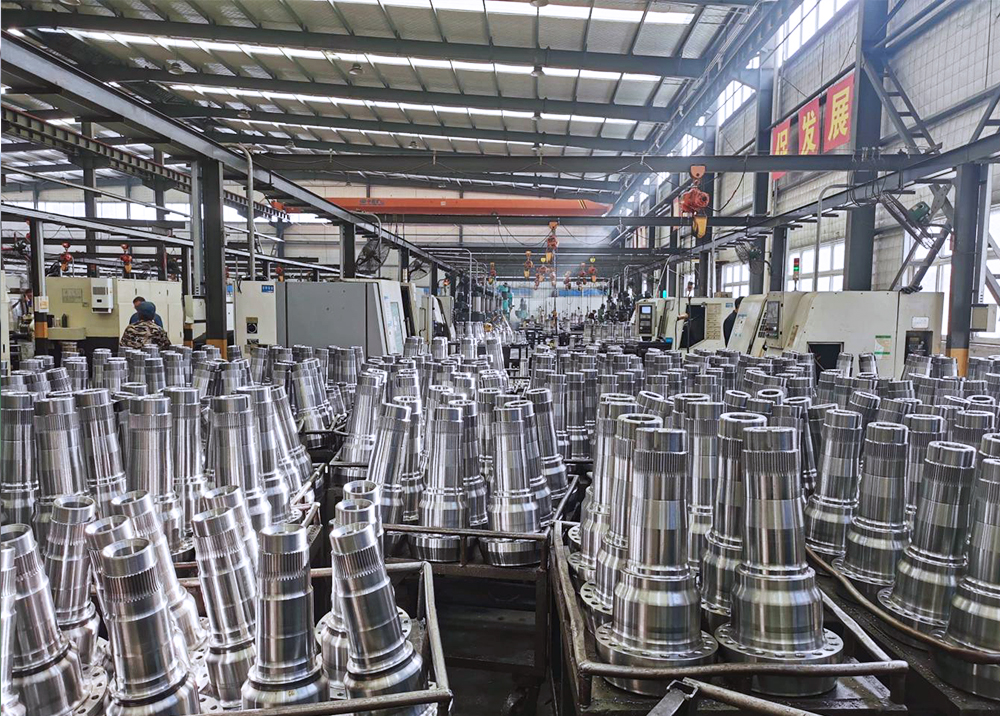

Trailer, Semi-trailer Axle Spindle、Truck Half Axle Housing Construction、Vehicle Support Axle、Oil Drill Pipe Joint、Screw Drilling Tool Production Process.



One

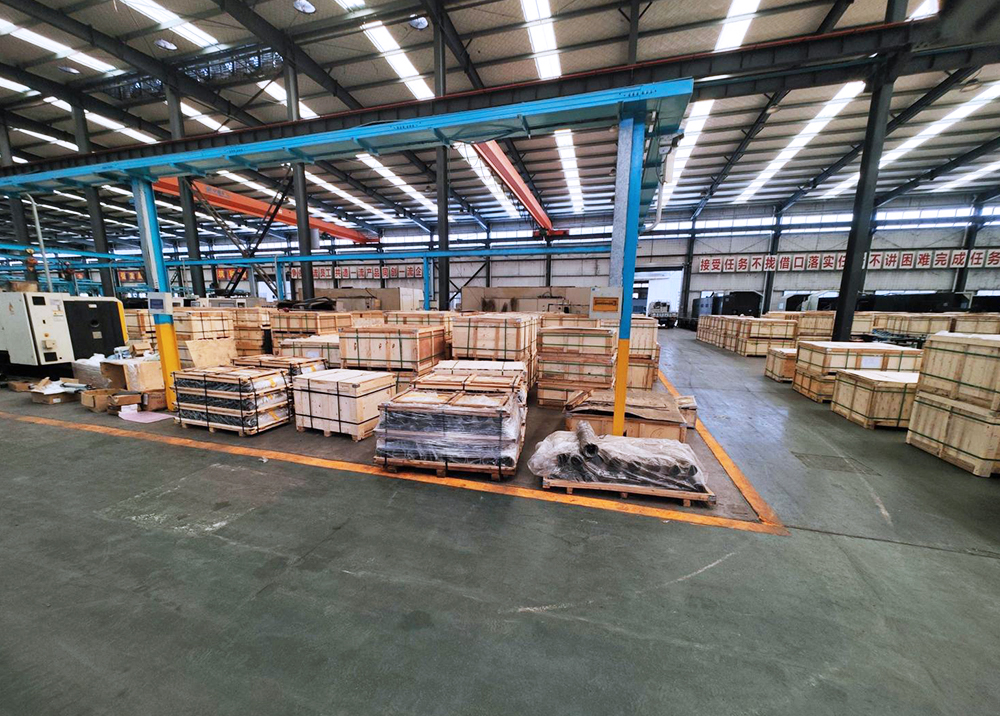

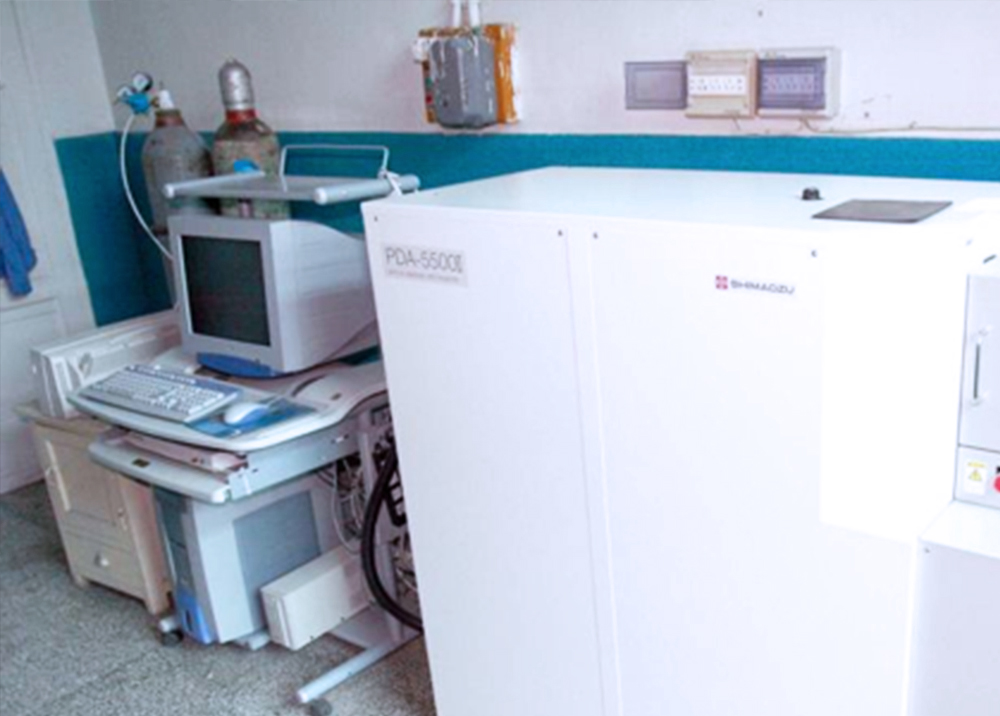

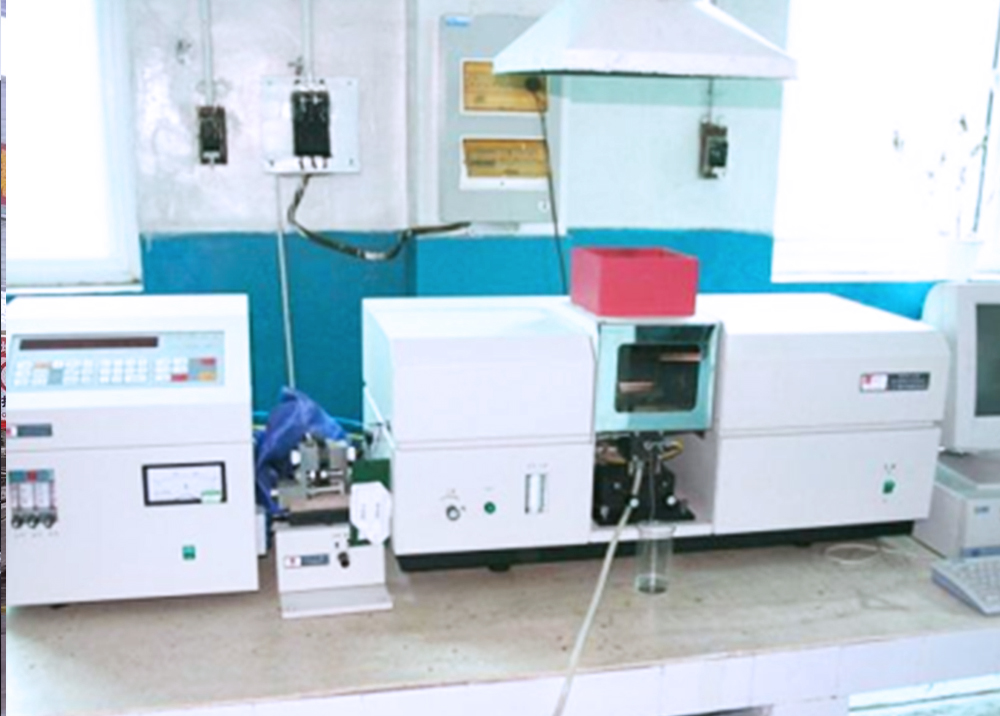

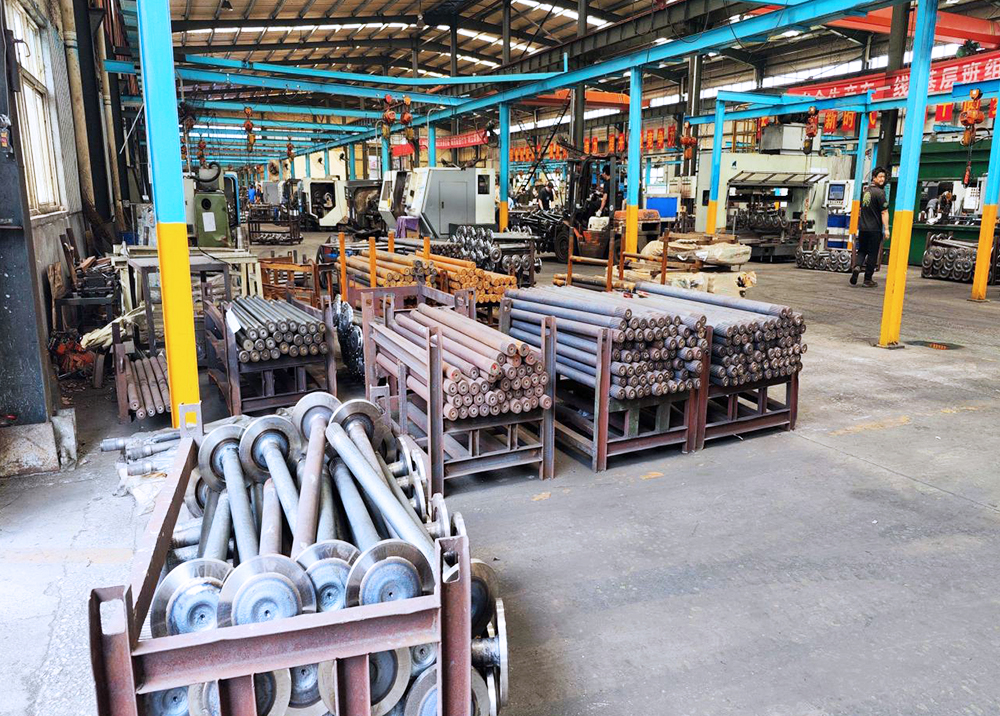

Raw Material Inspection

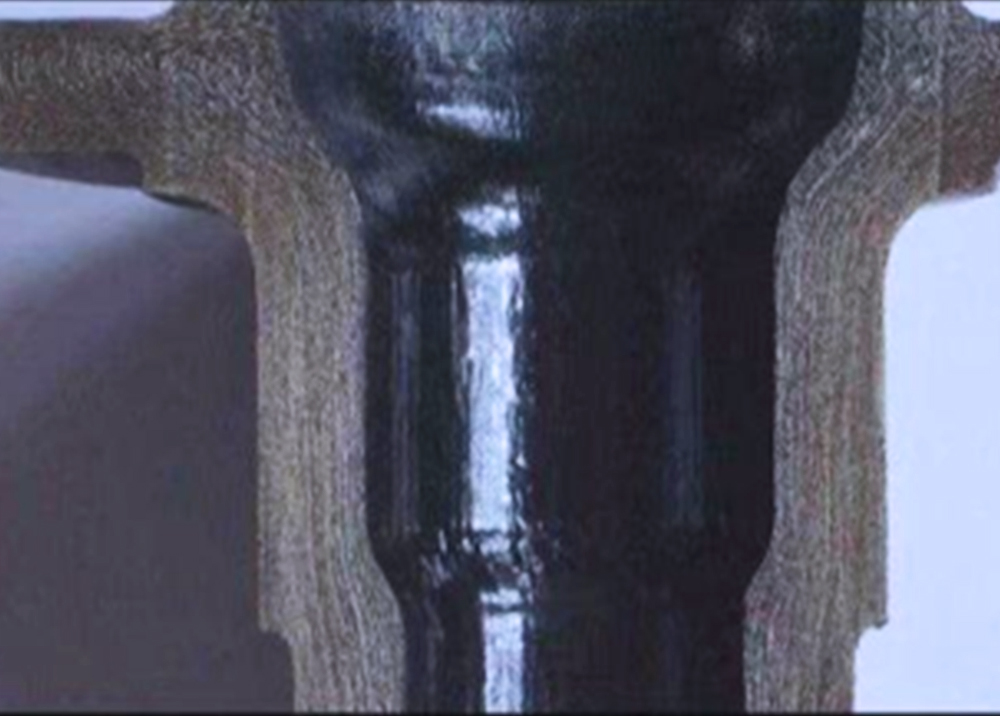

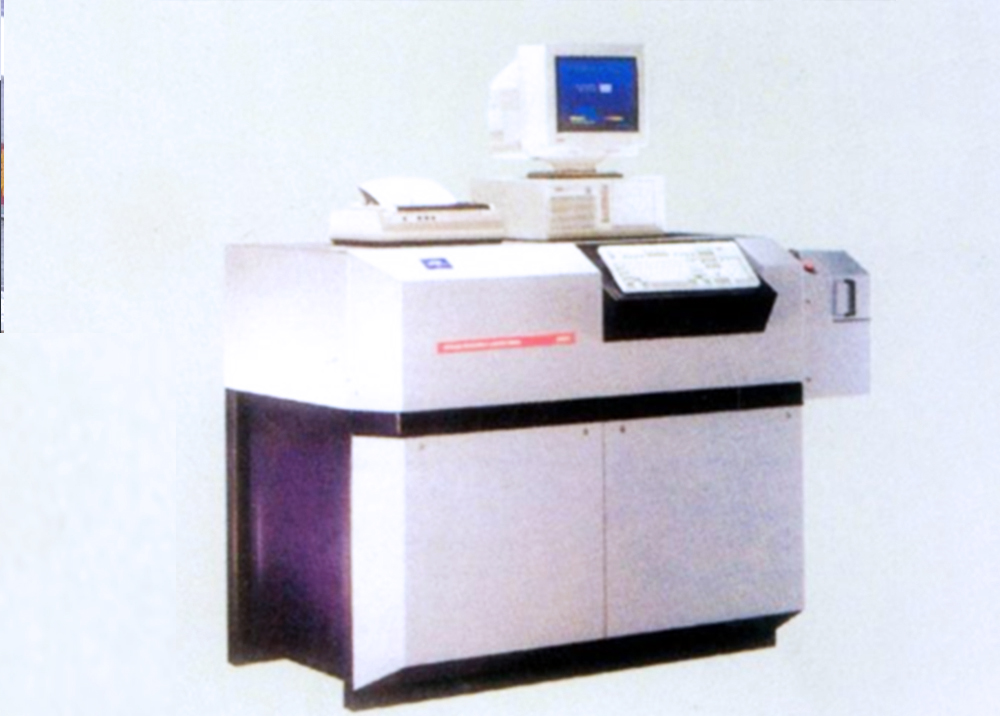

Primarily focusing on whether the accepted material's chemical composition aligns with the required specifications, as well as low-magnification structure inspection: checking for inclusions, shrinkage cavities, air bubbles, peeling, and white spots within the material. Ensuring the material is not loose or segregated.



Two

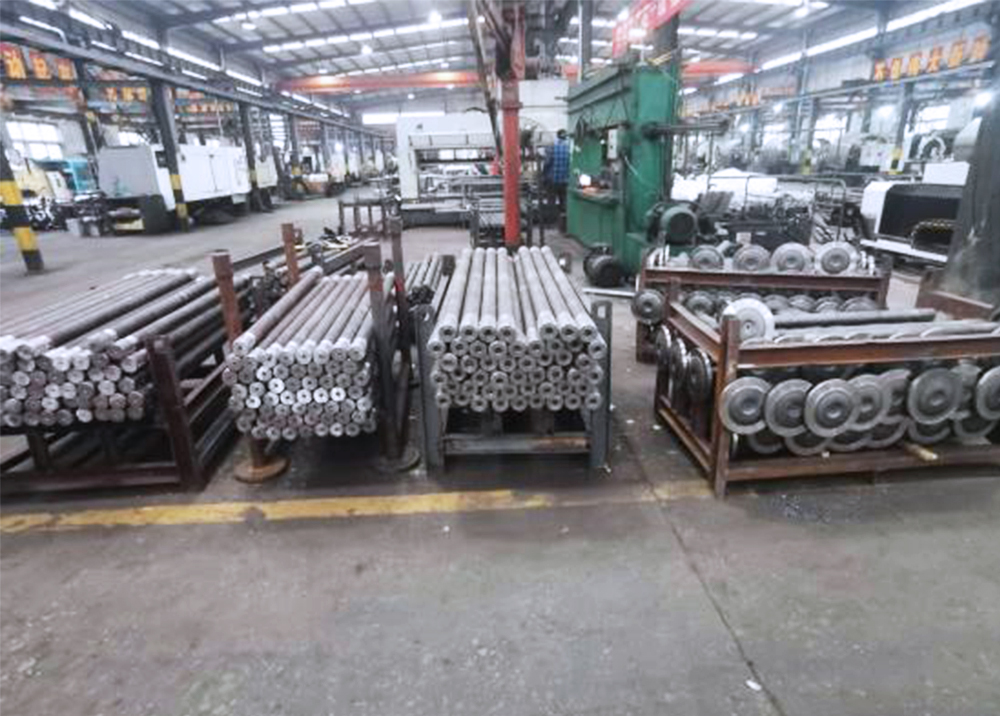

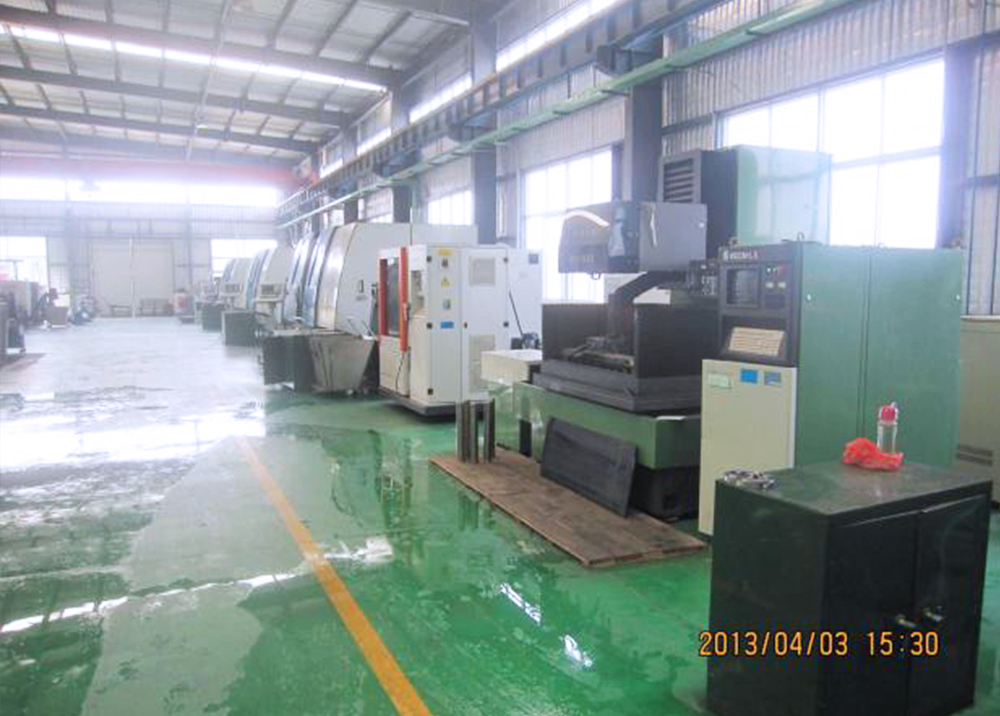

Cutting



 Determine the cutting length based on the product's rated weight.



Three

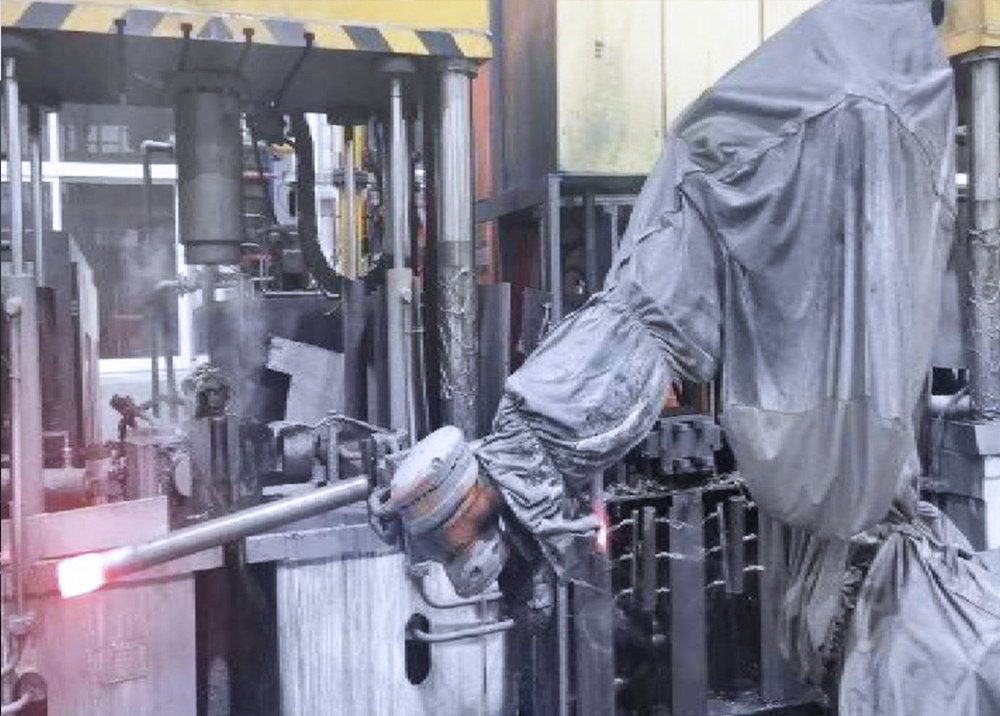

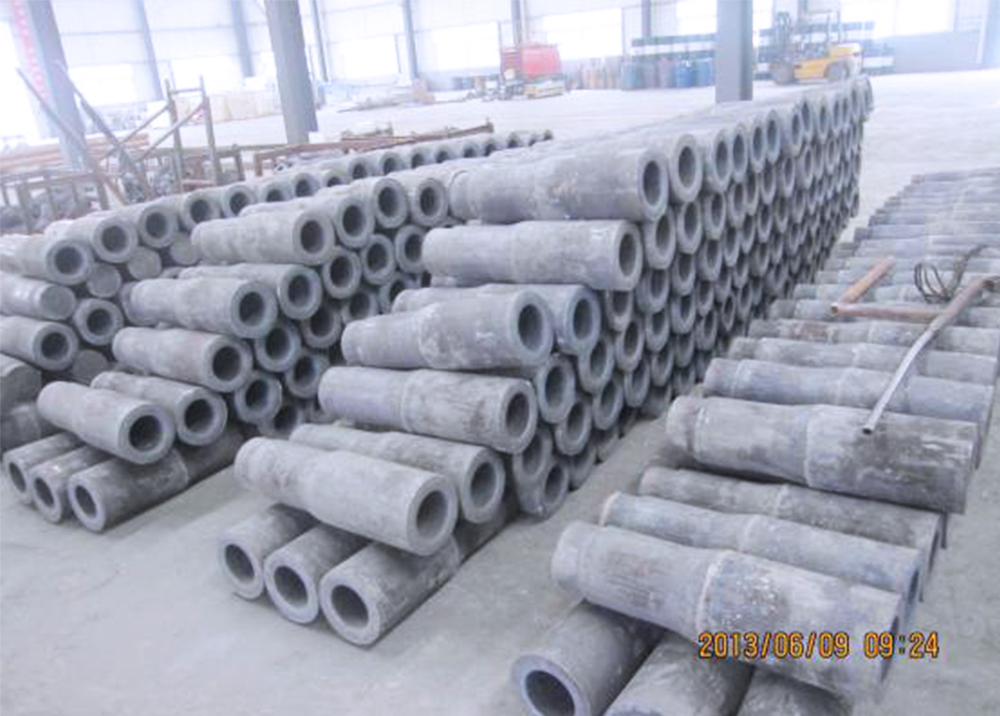

Stamping

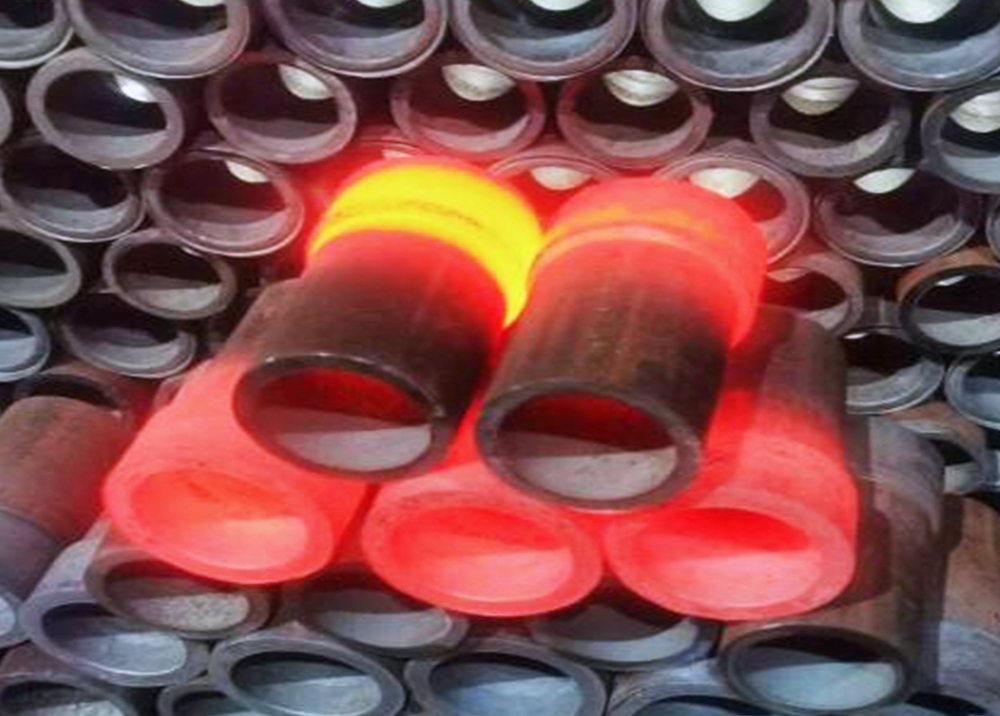

The material is heated to 1150-1180 degrees in an intermediate frequency heating furnace, and the desired shape is achieved through three processes: upsetting, punching, and forming.

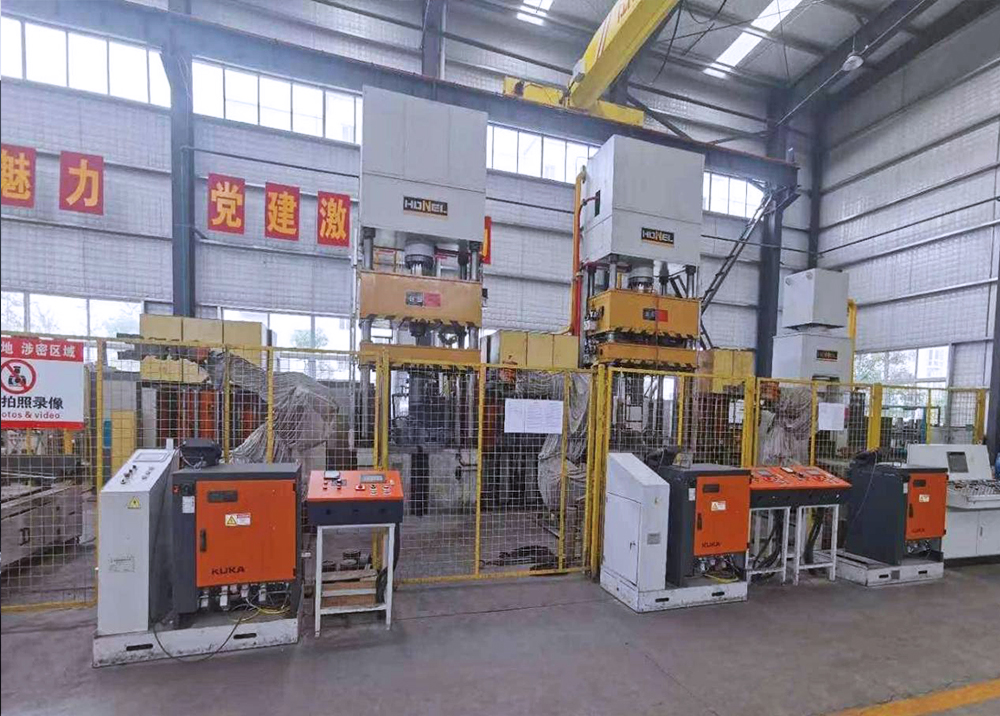

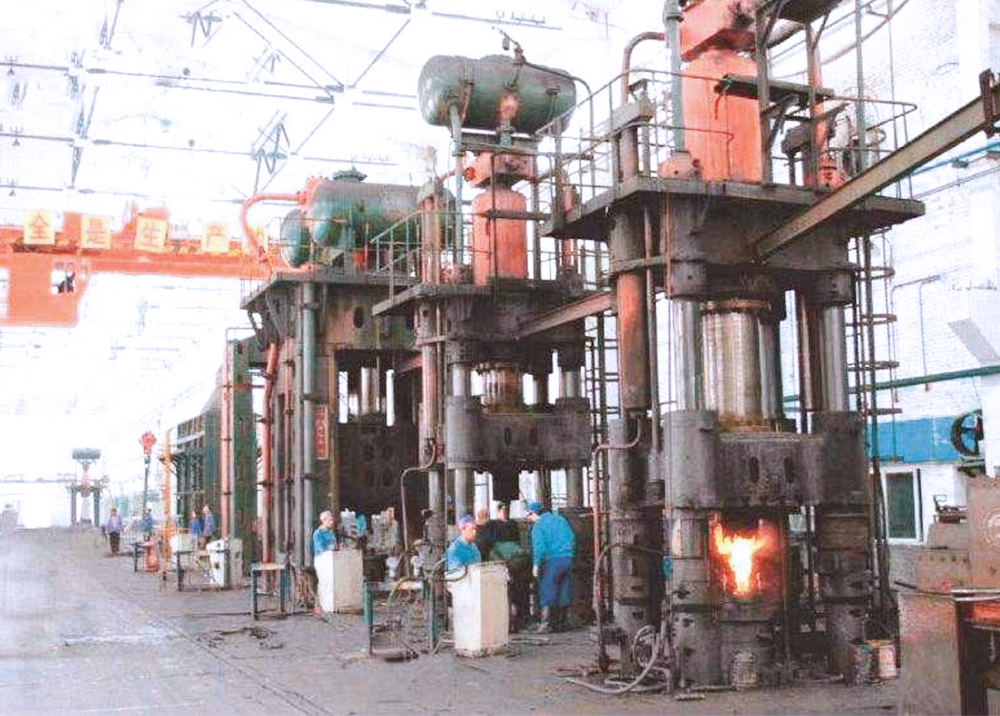

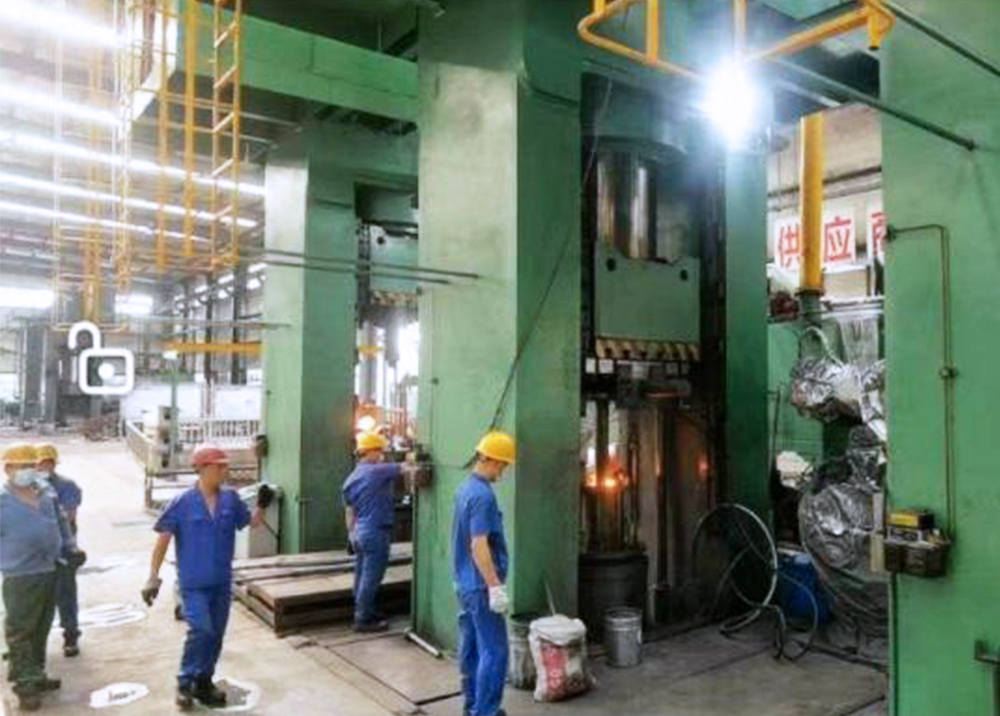

Punching machine

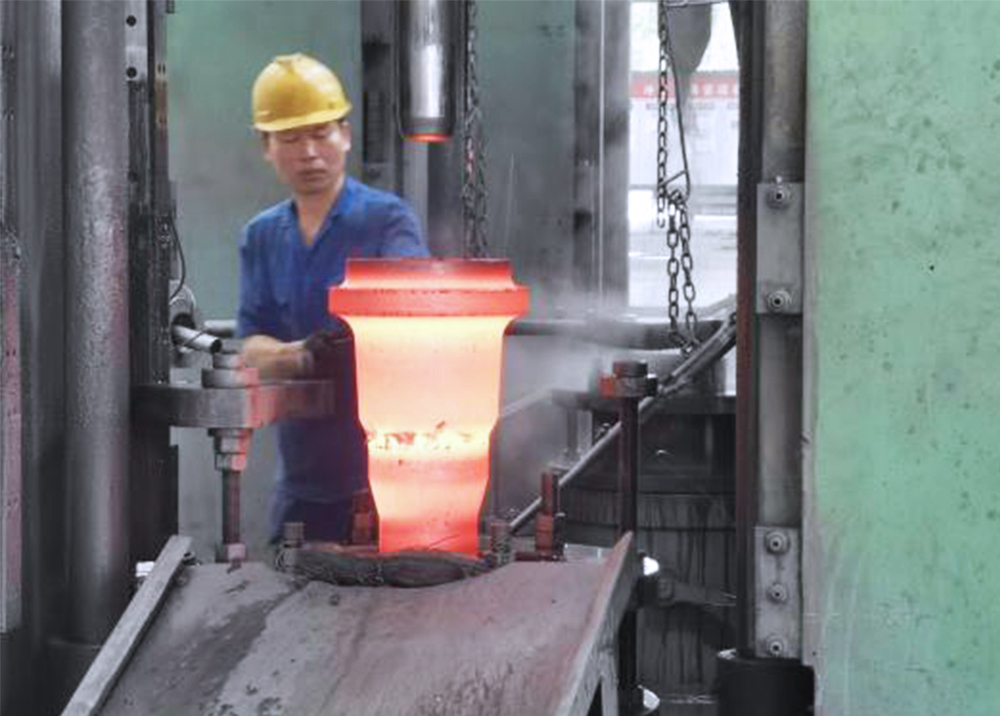

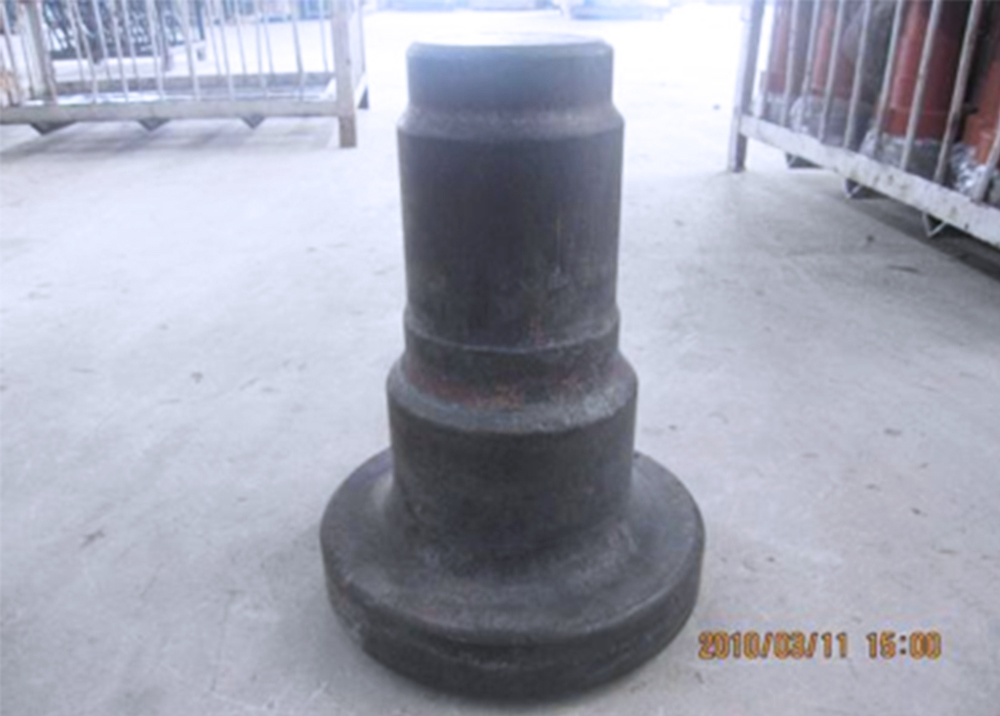

Thermoforming



Four

Normalization

Alleviate stress, alter internal structure, aid in processing, enhance quenching and tempering efficiency.



Fiver

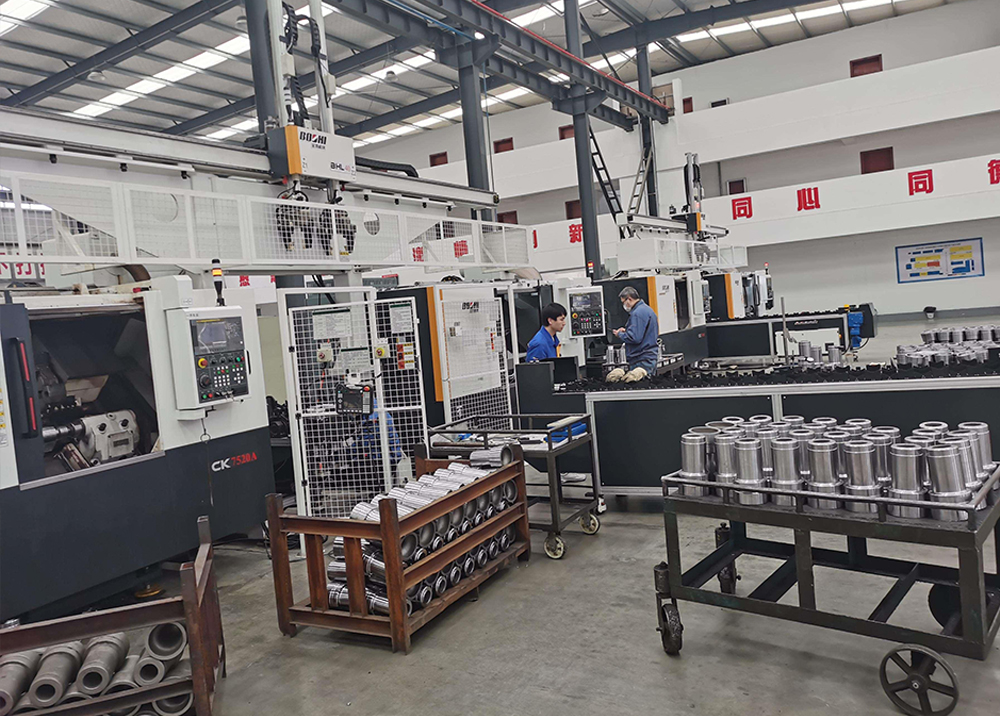

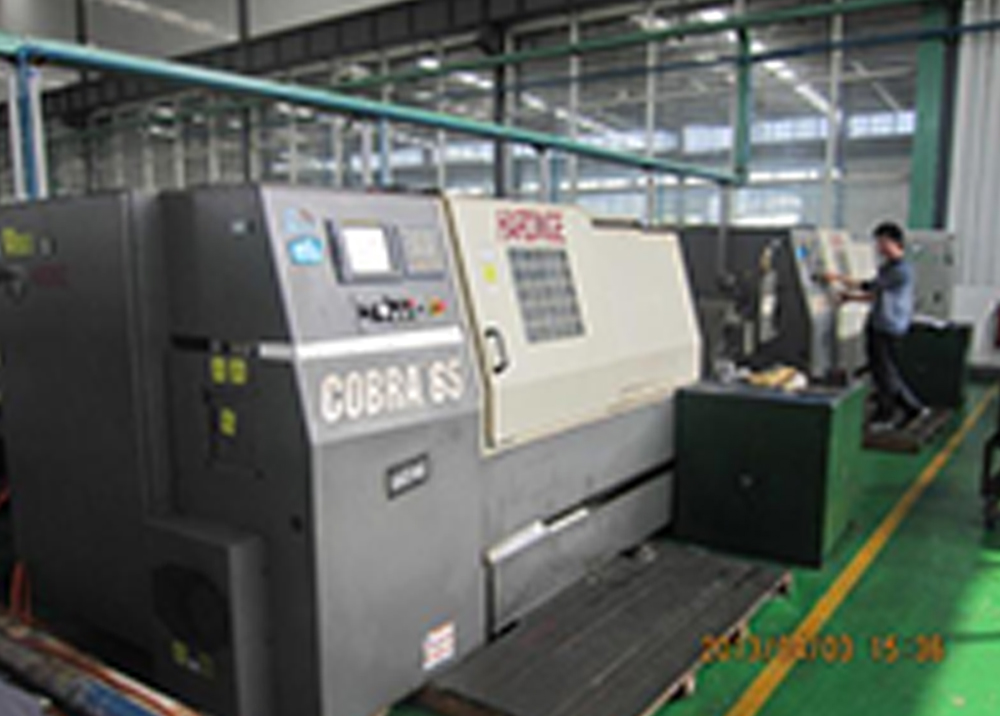

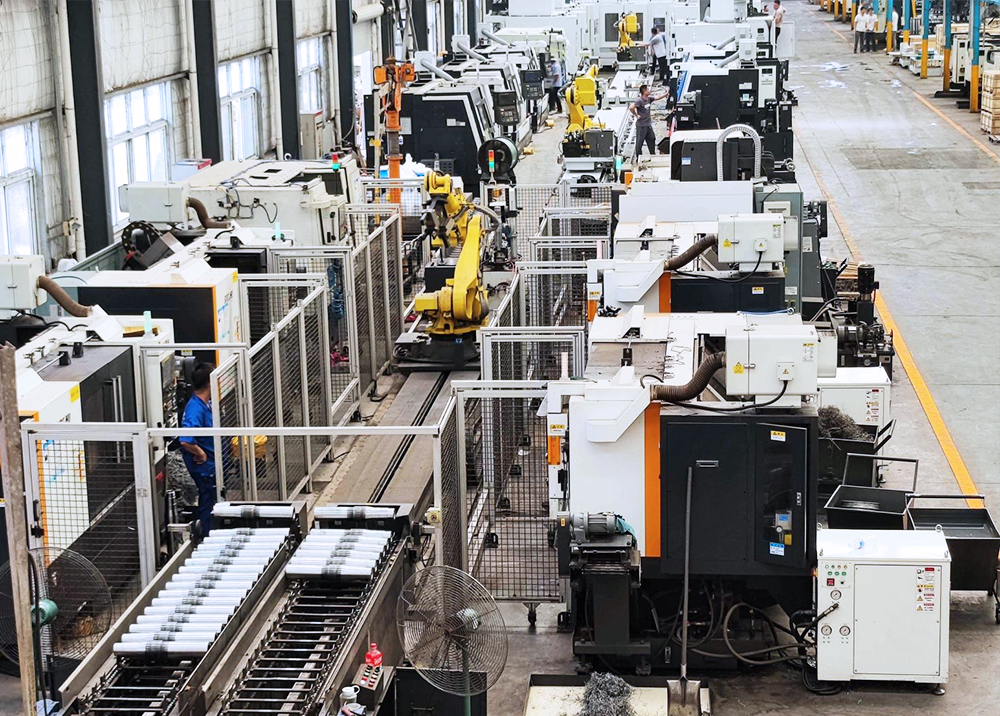

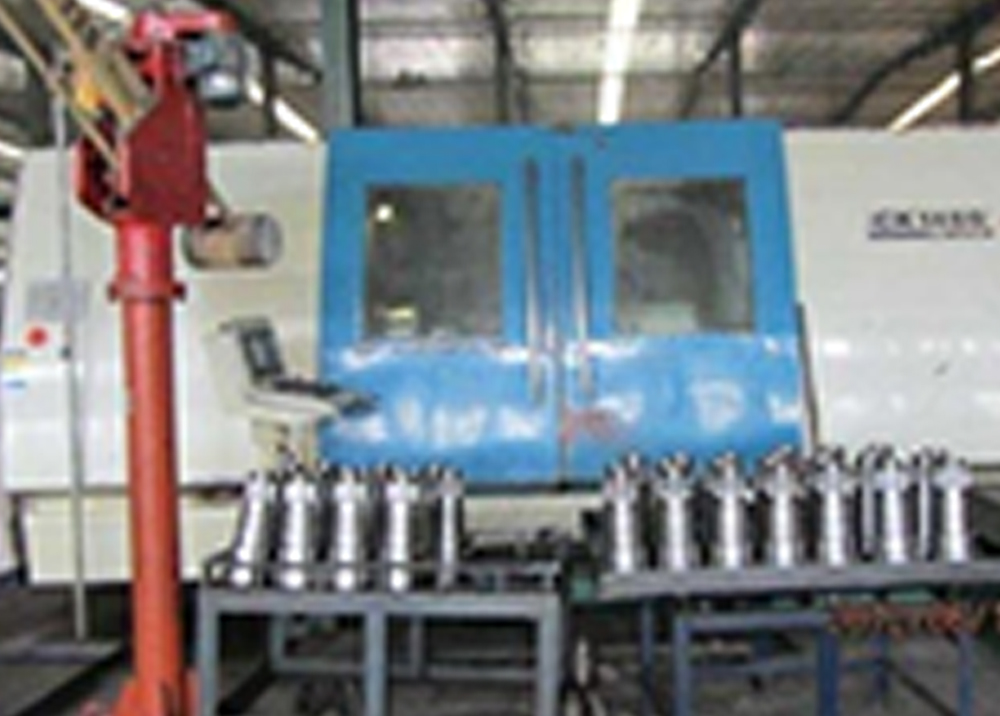

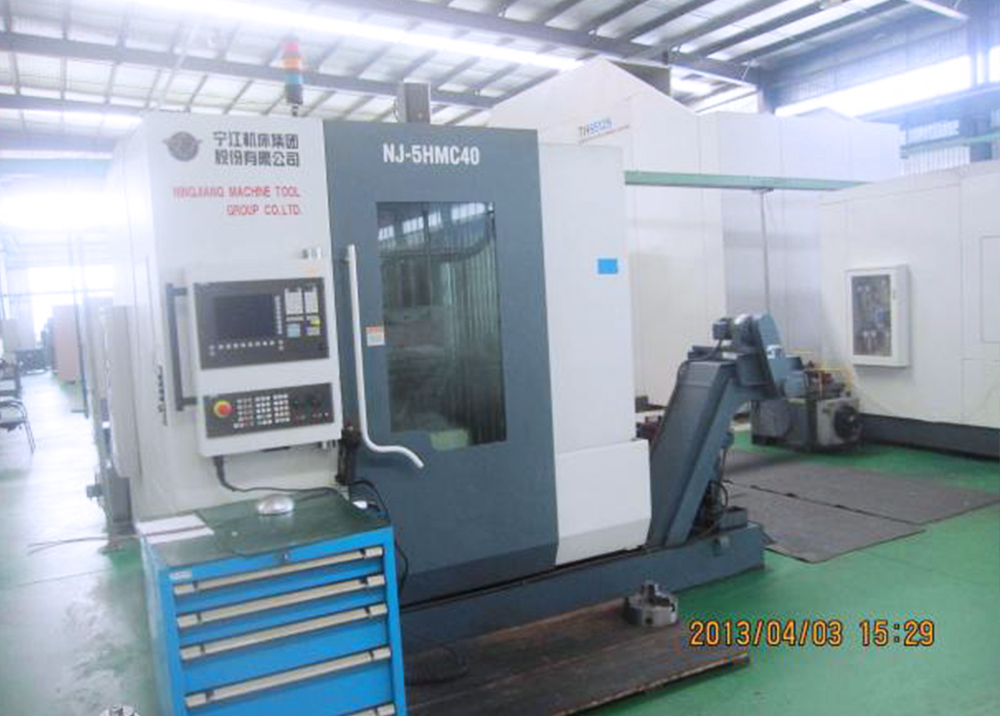

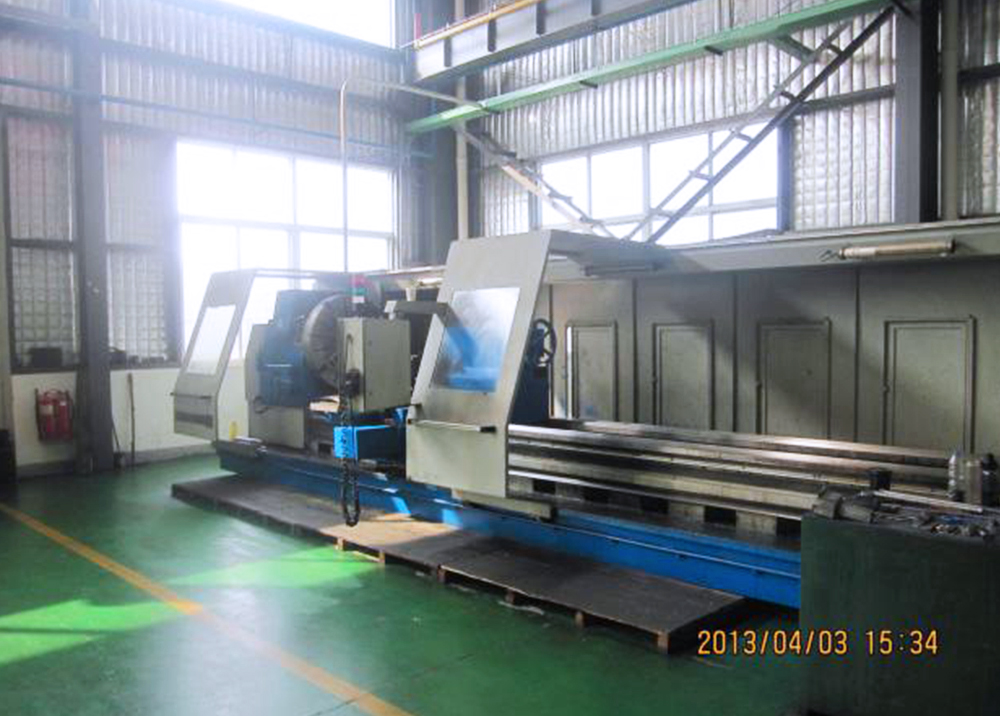

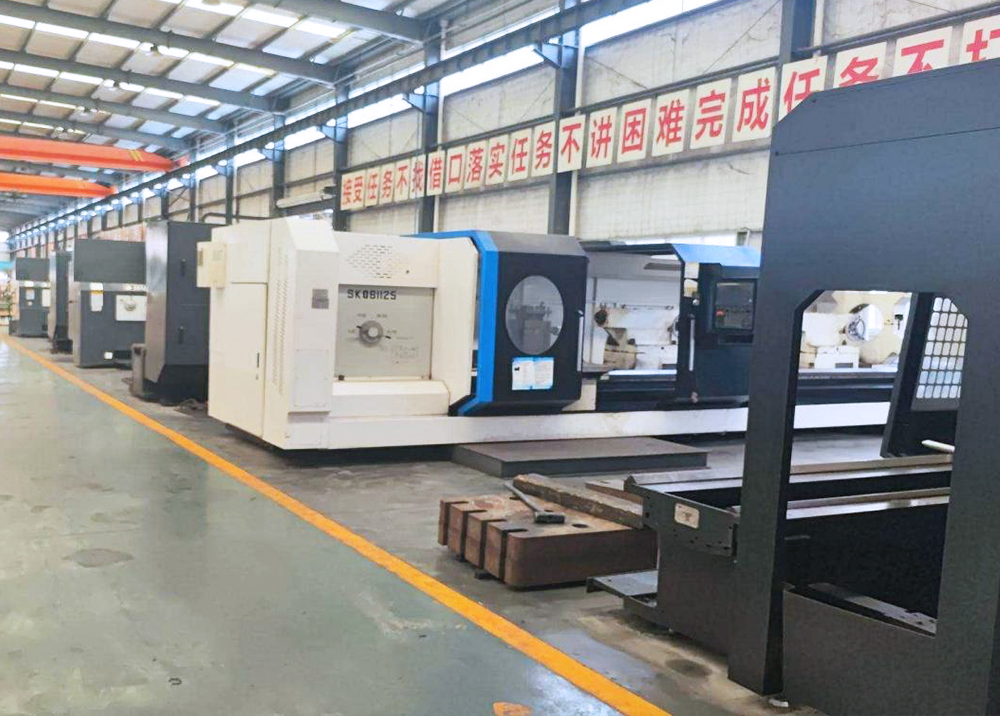

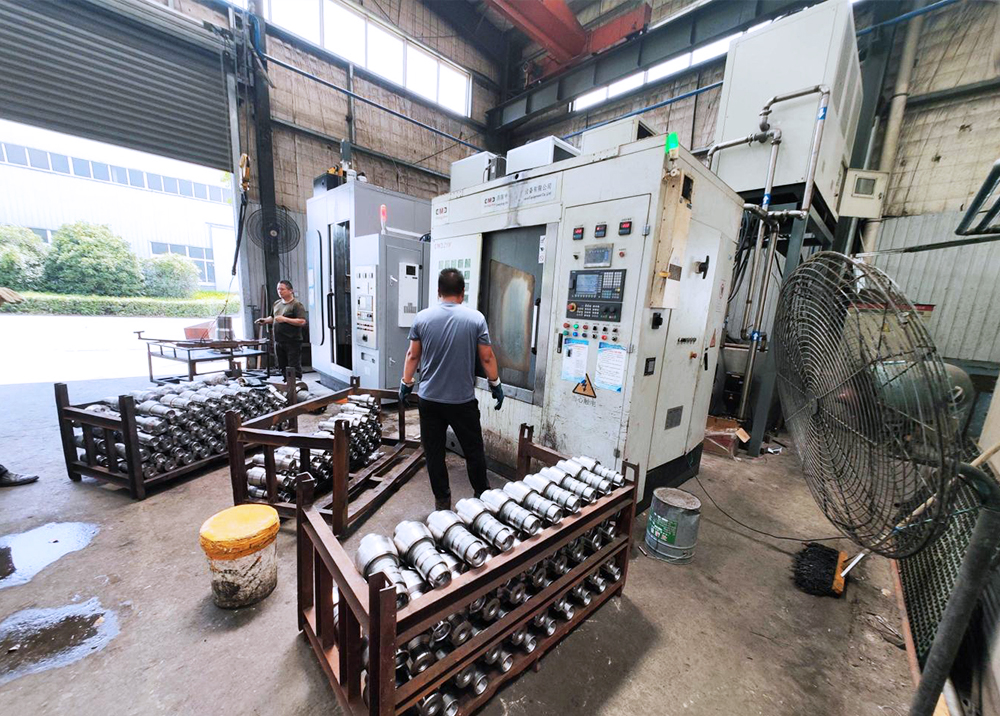

Rough machining (turning)

Through initial processing, the desired shape is achieved, and the uneven stamping surface is removed to achieve the desired figure shape, which facilitates quenching and tempering, and finalizing.



Six

Quenching and tempering

In accordance with technical specifications, the hardness, mechanical properties, metallurgical structure, impact energy, tensile strength, yield strength, etc. specified on the product drawing are attained to enhance the product's performance in application.

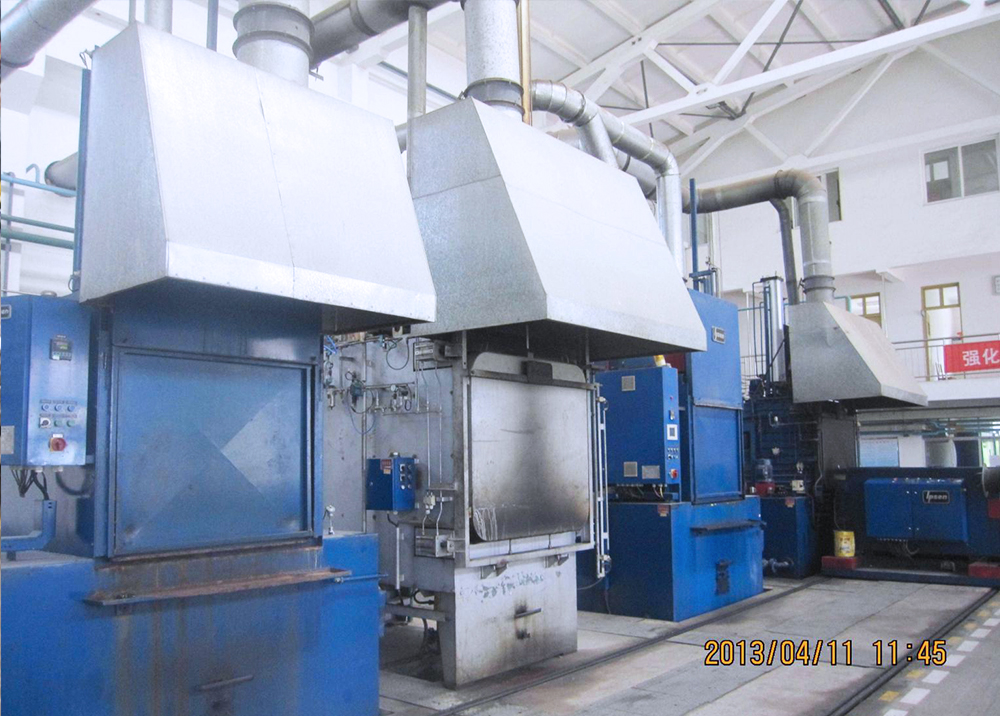

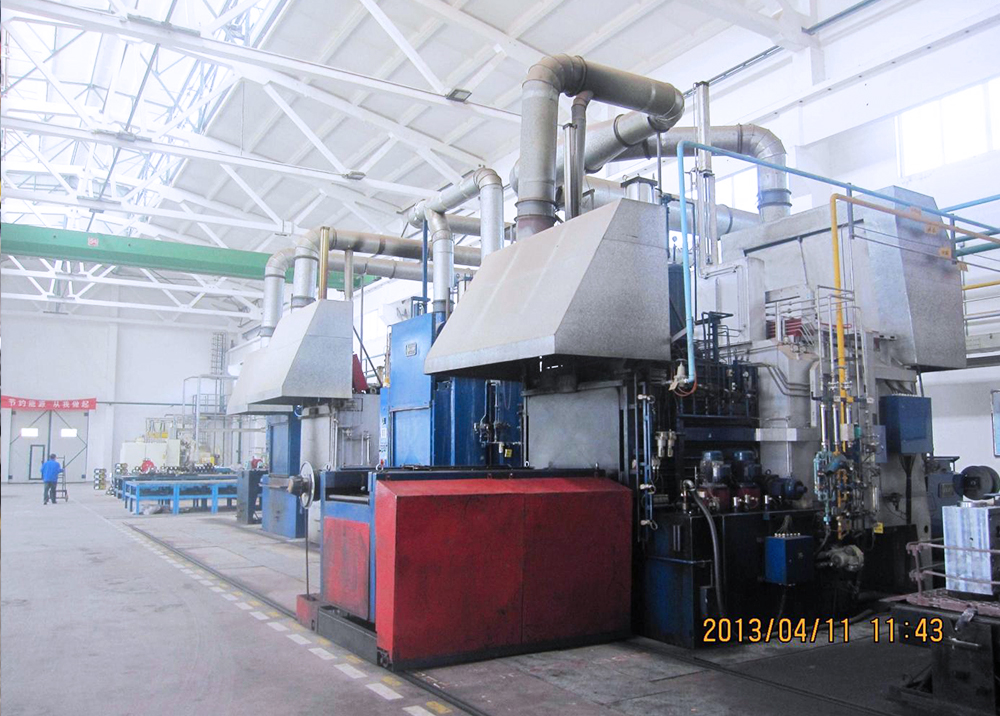

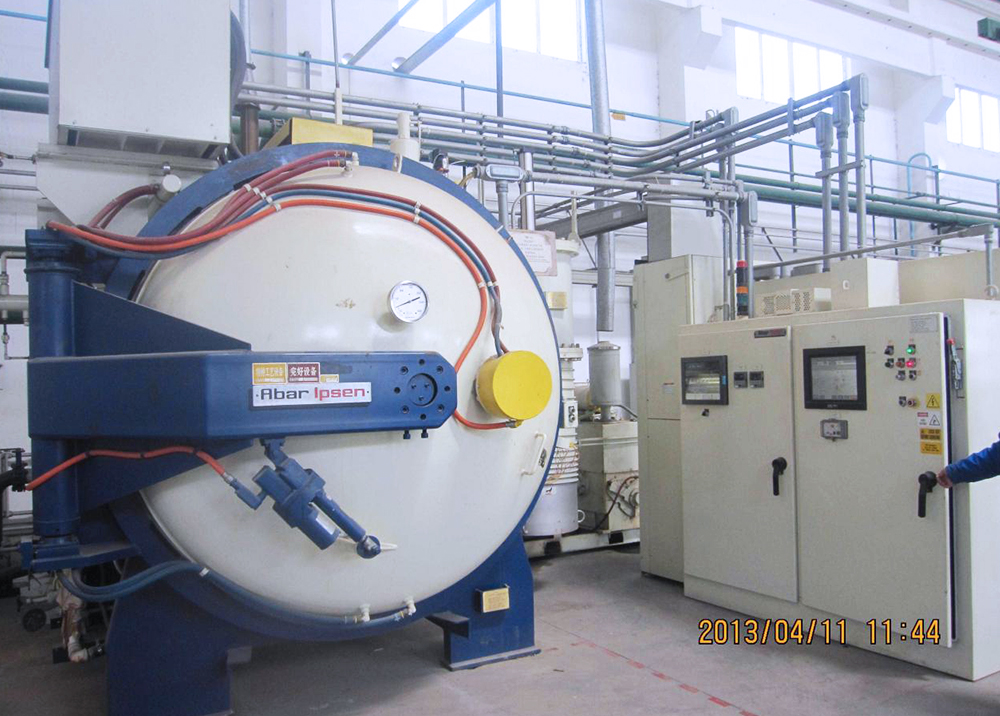

Ipsen Controlled Atmosphere Furnace

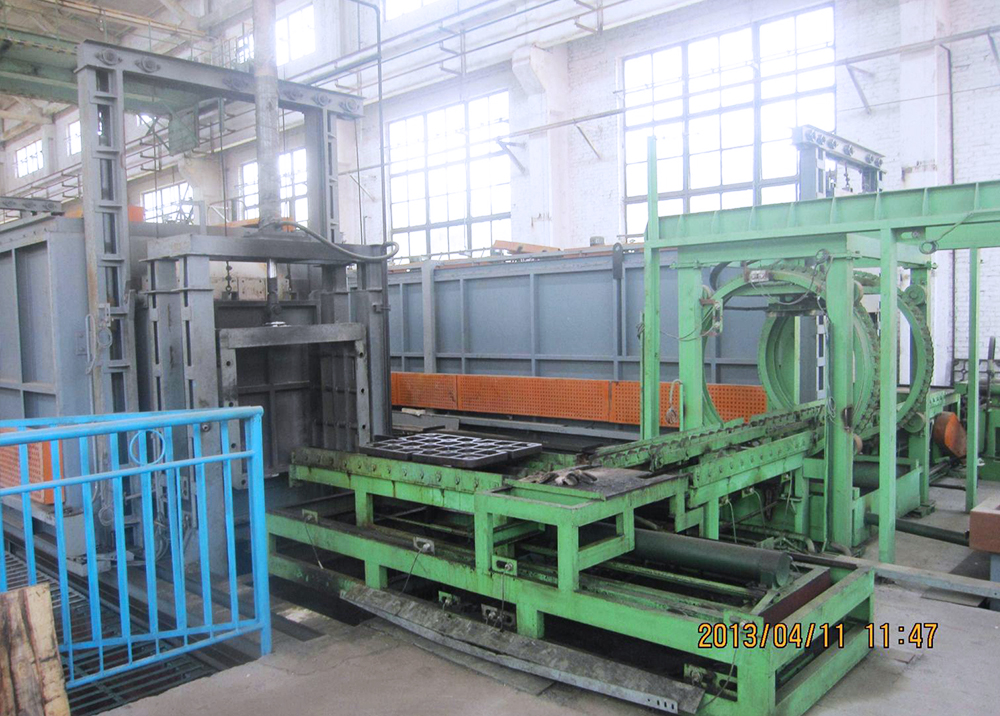

Continuous heat treatment quenching furnace

Nitrogen Controlled Atmosphere Furnace

Nitrogen Controlled Atmosphere Furnace

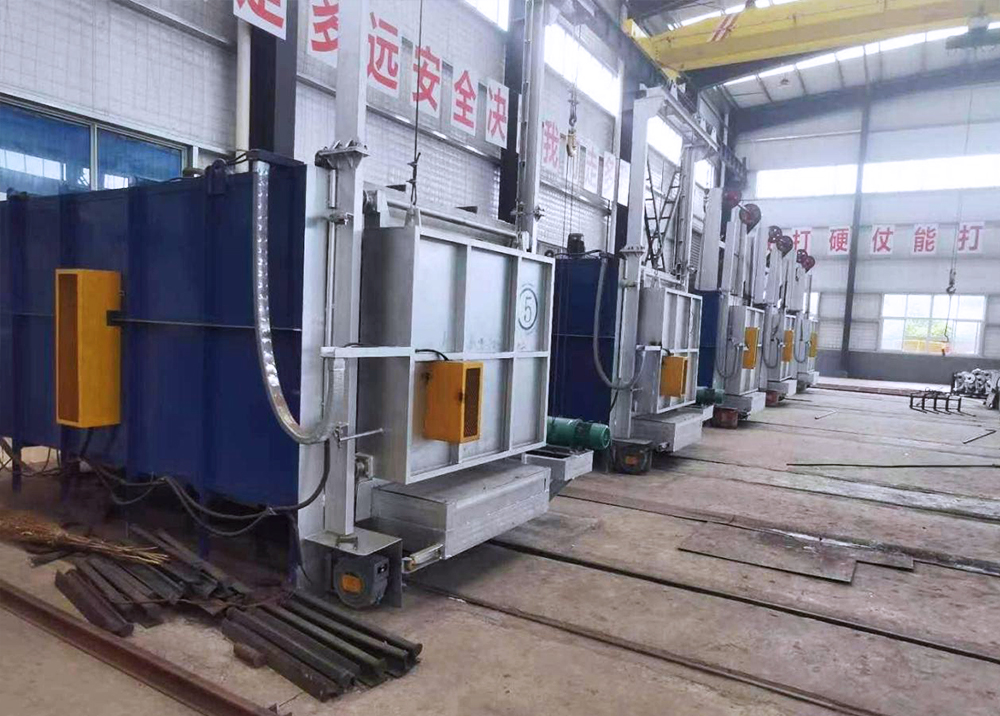

Box resistance furnace



Seven

Ultrasonic flaw detection:

Detect whether there are defects inside the product, cracks, folds and other defects



Eight

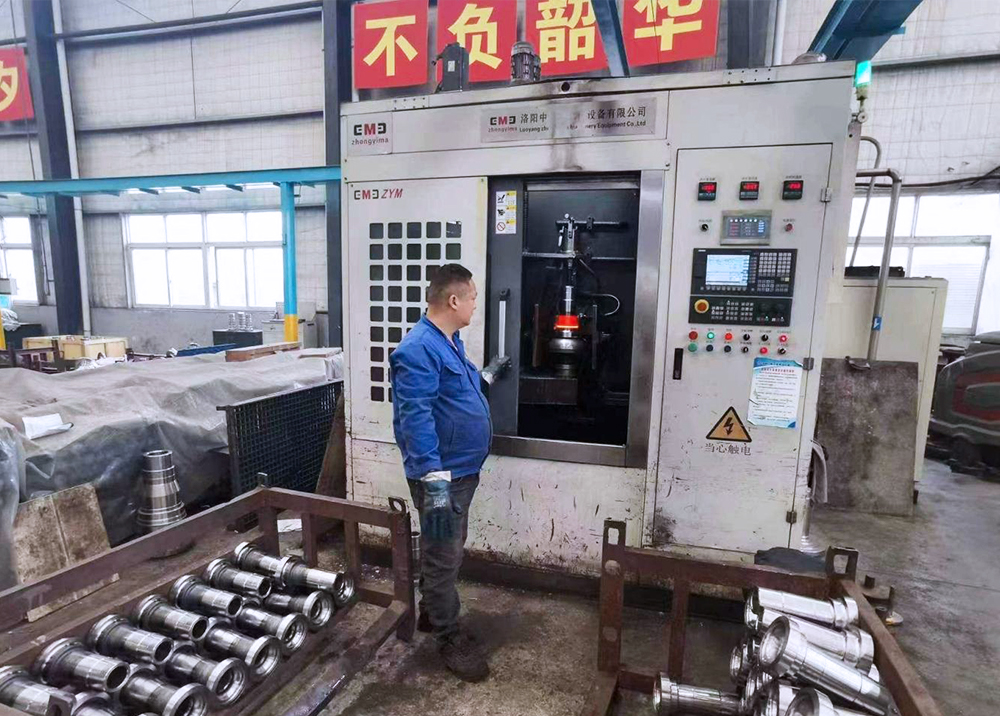

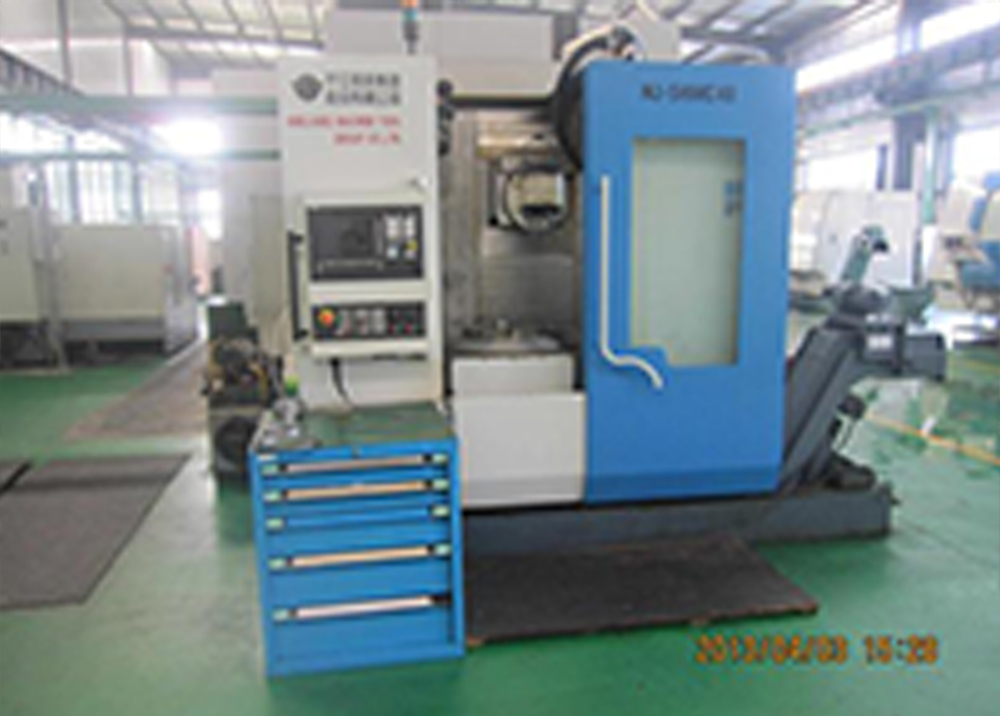

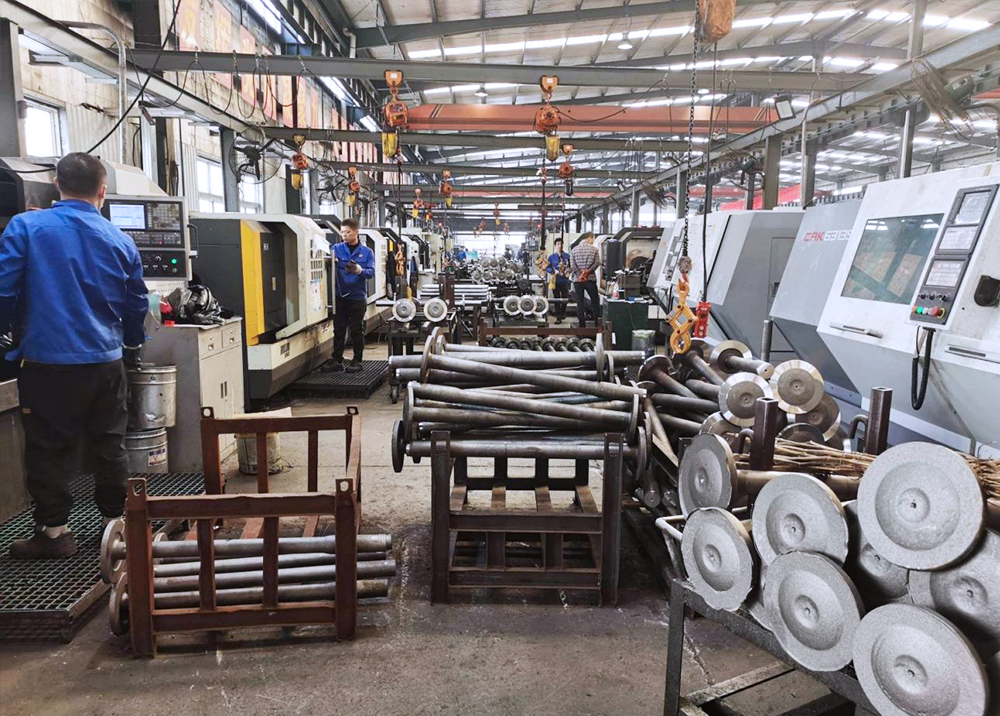

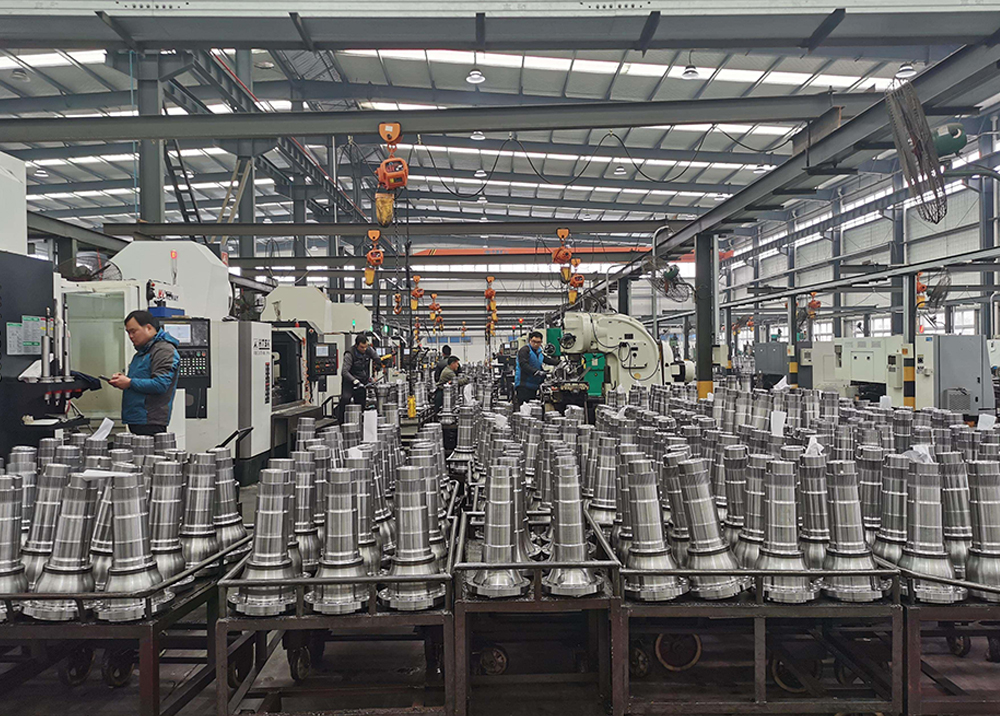

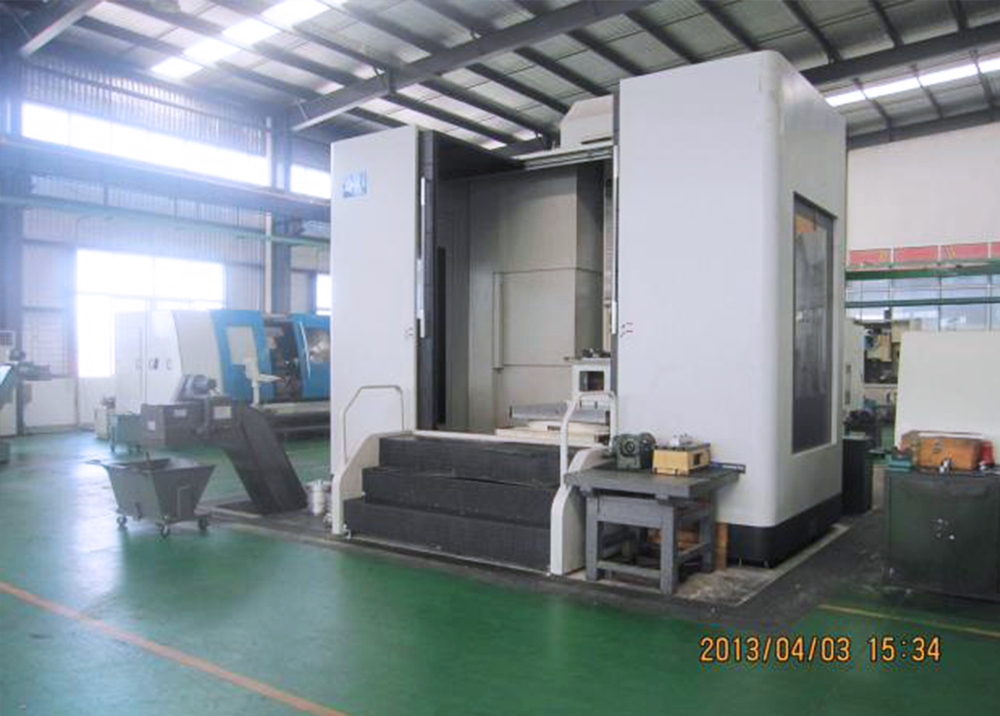

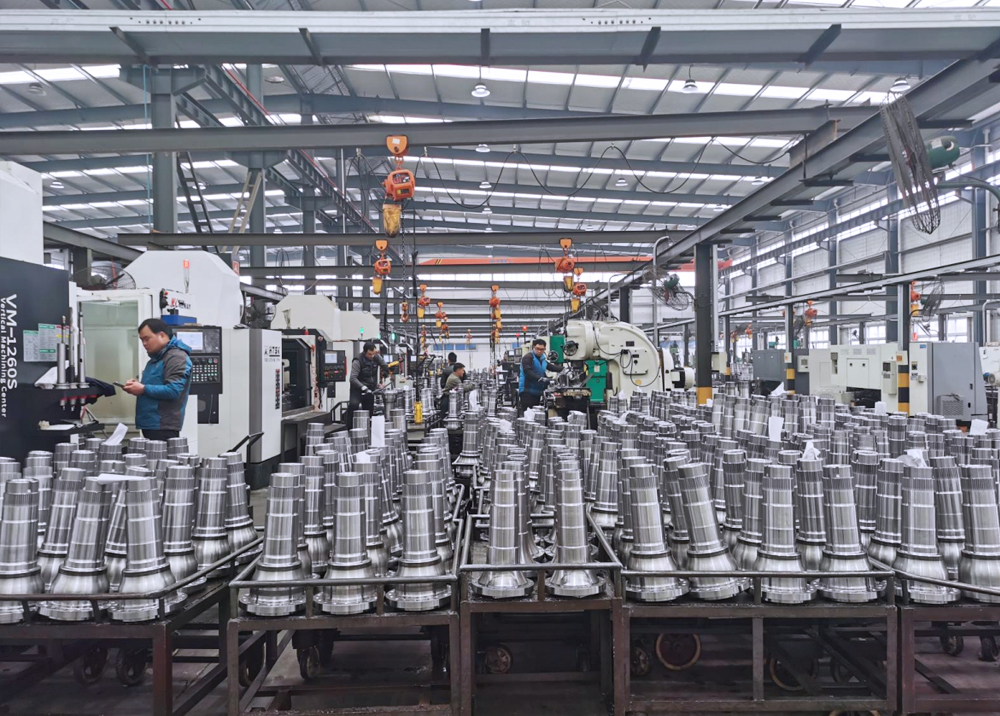

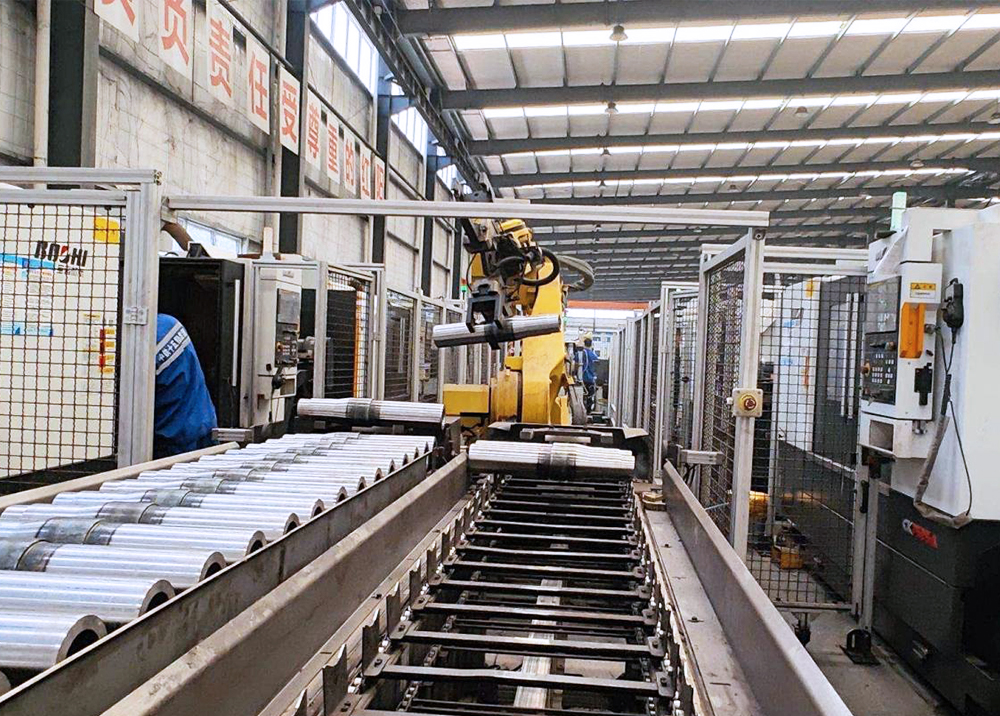

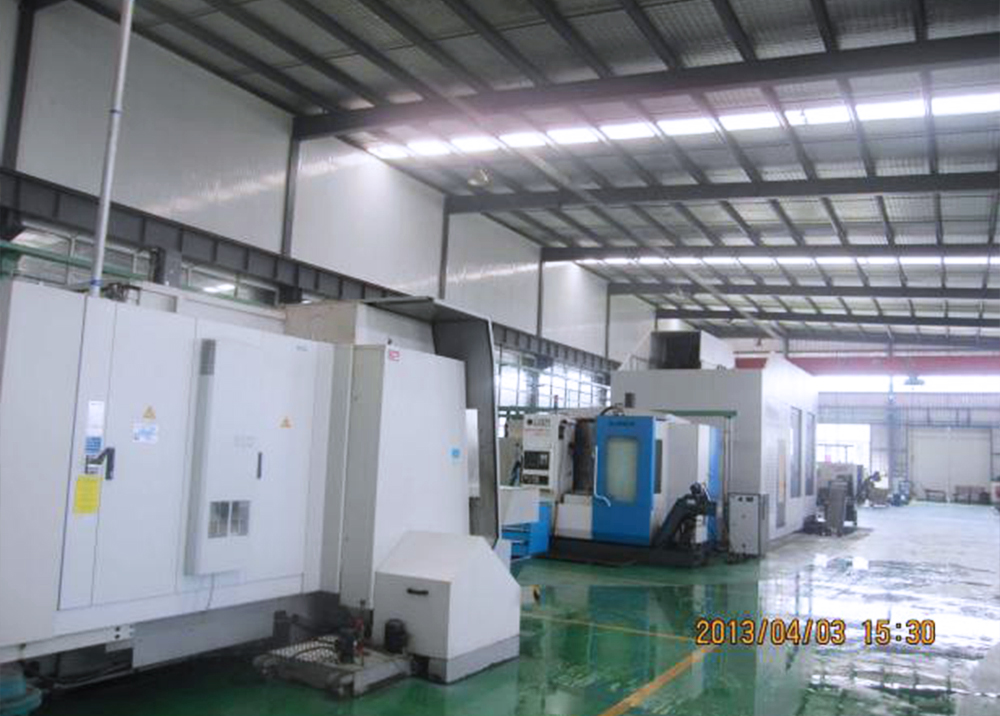

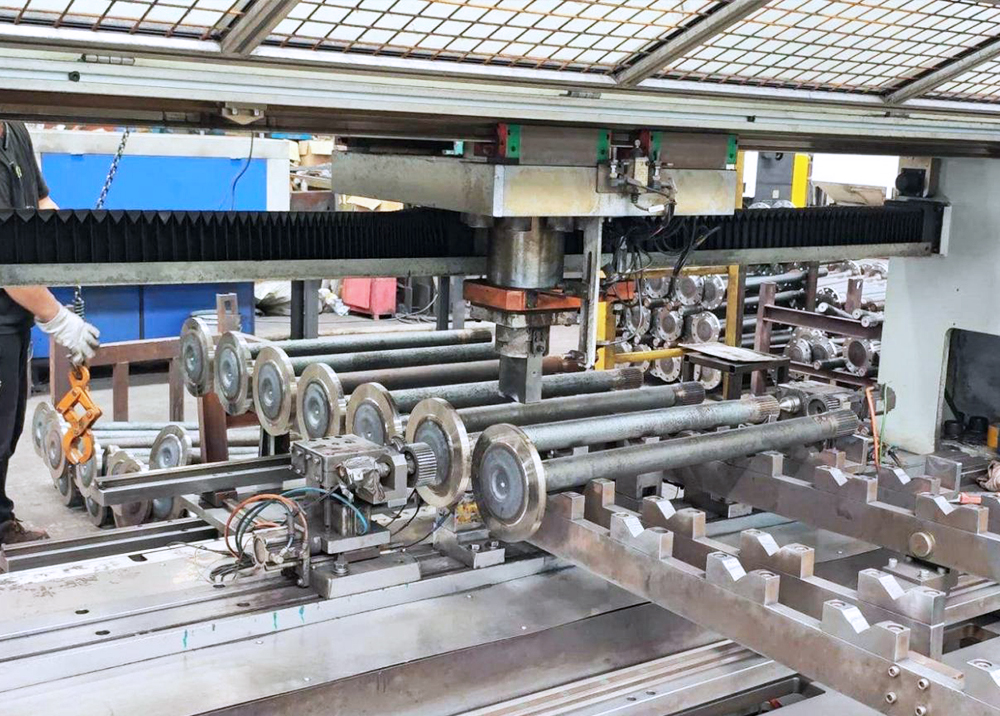

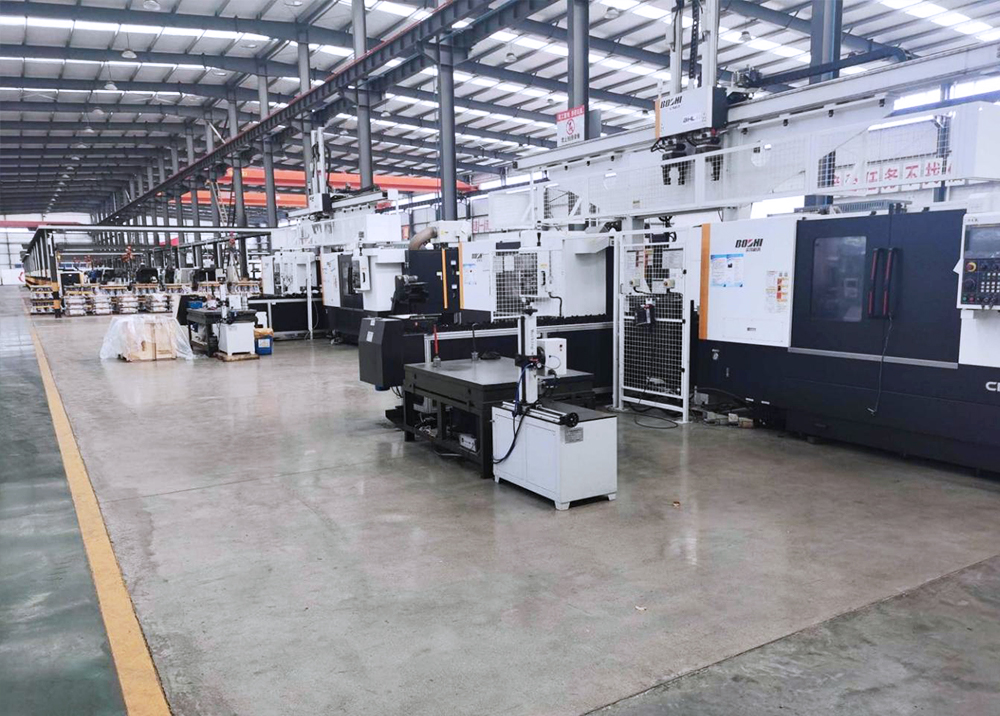

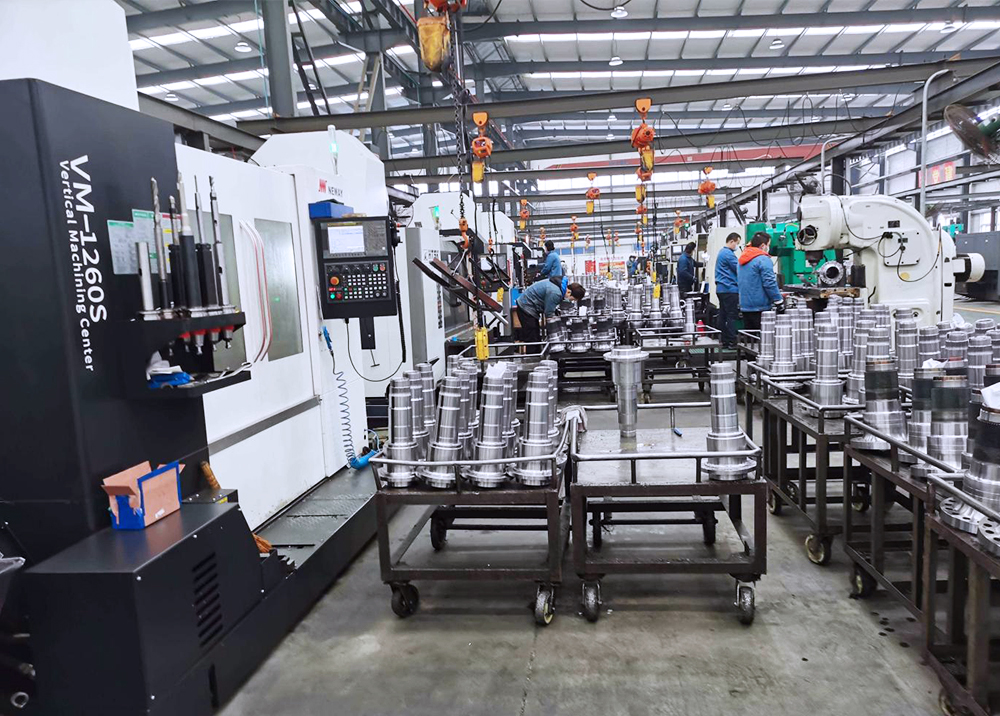

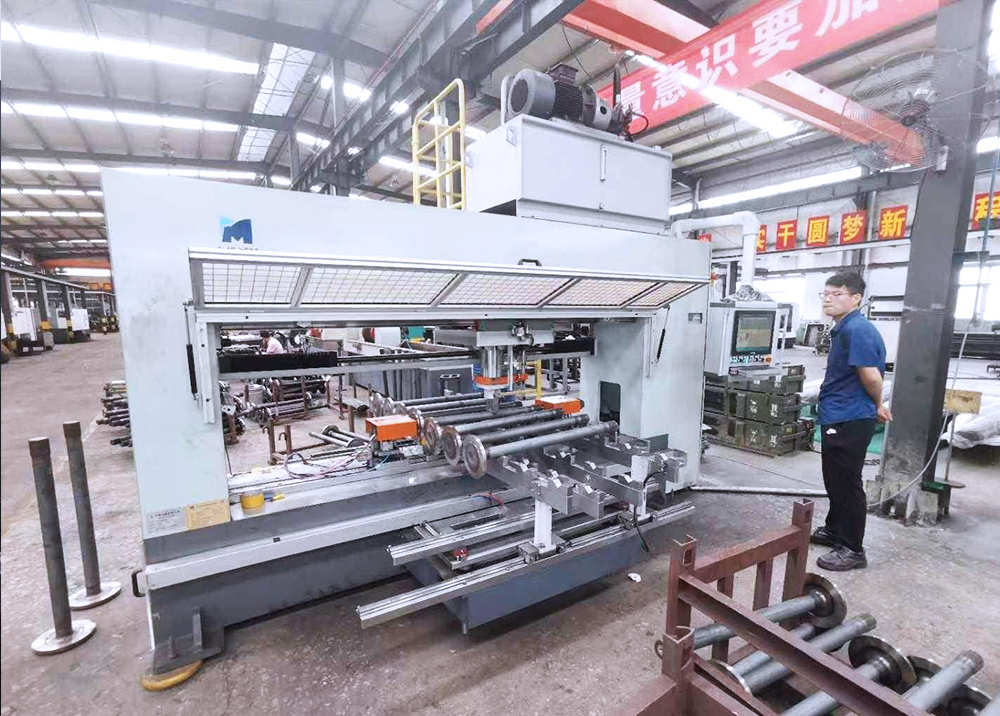

Finishing:

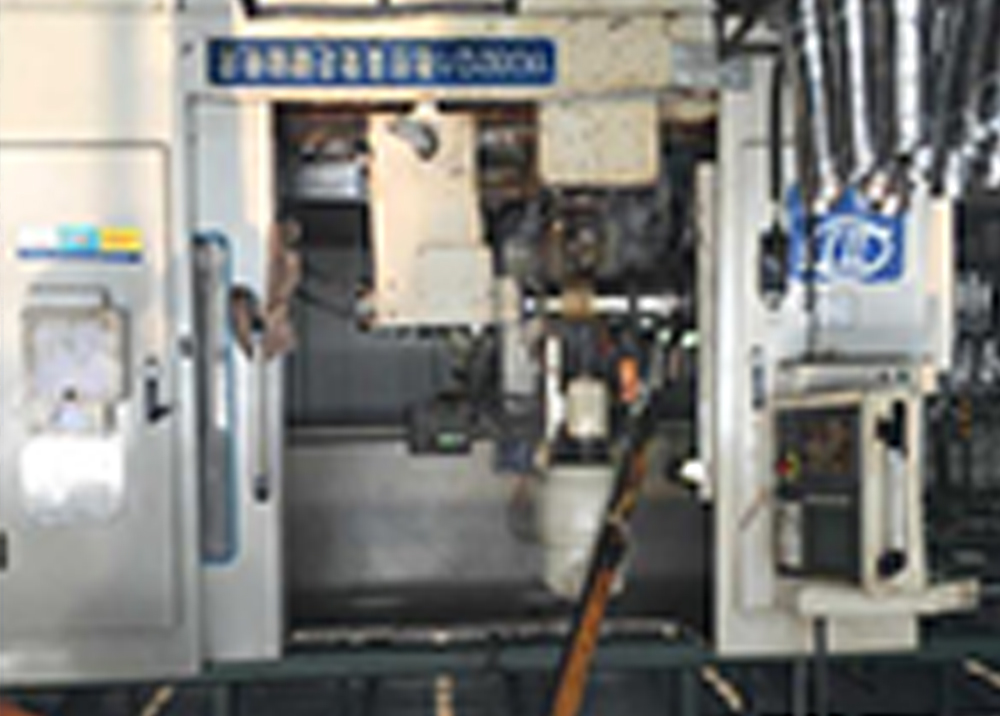

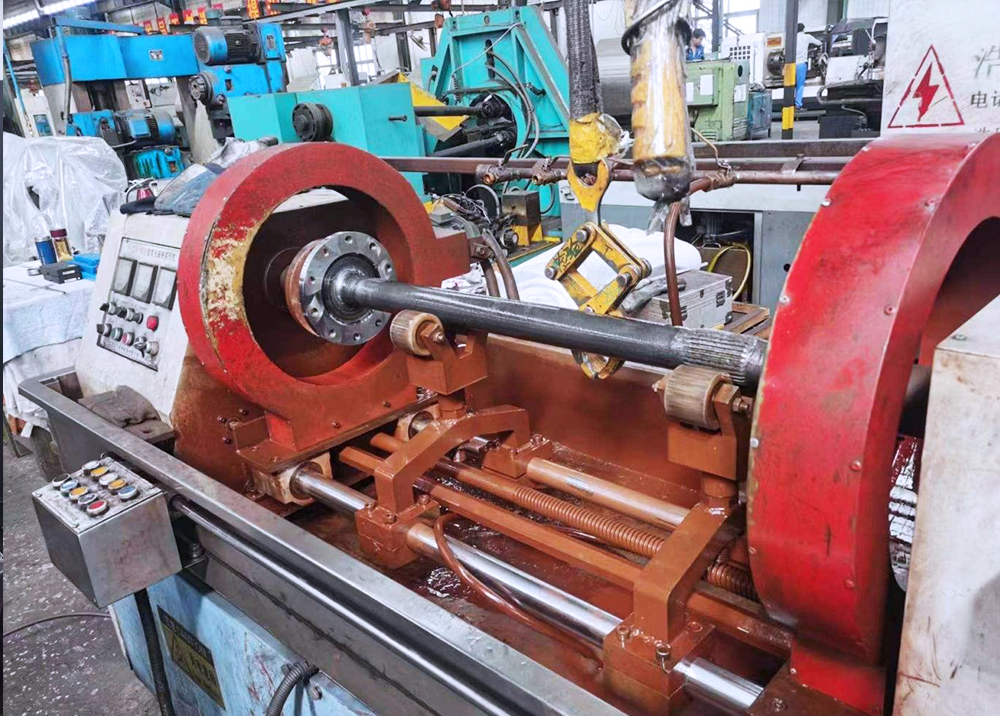

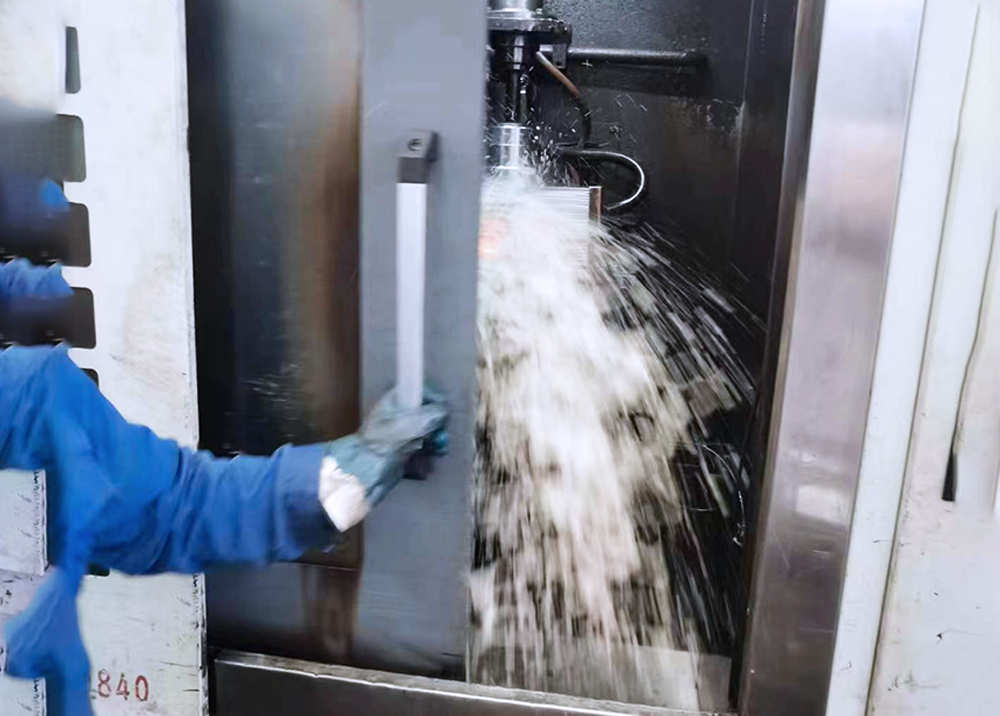

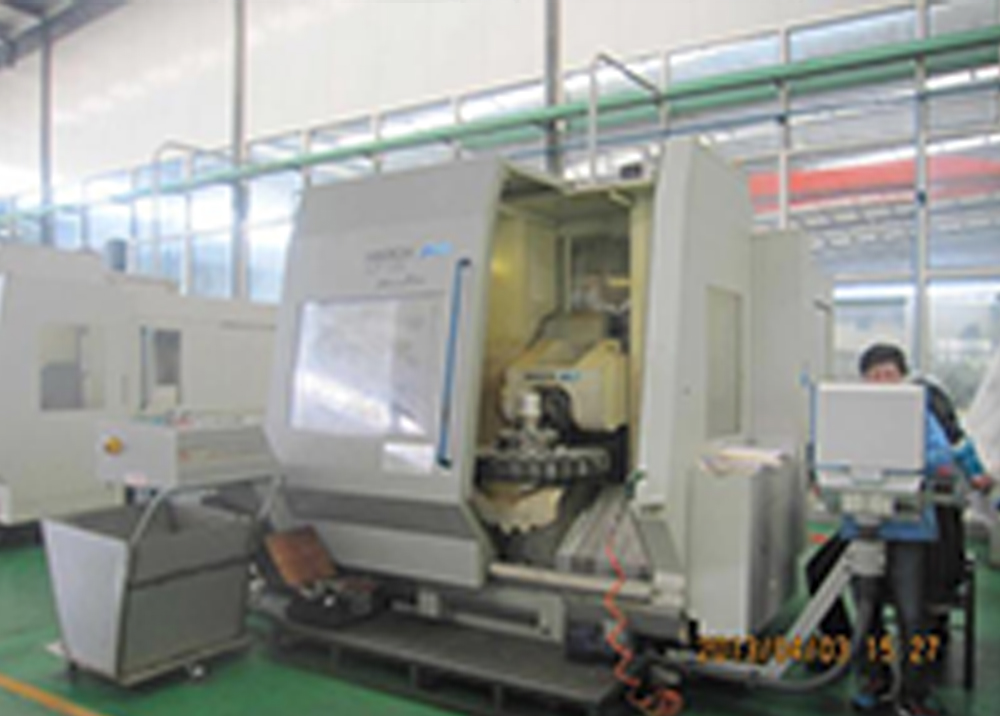

Turning large head straight mouth - turning small head straight mouth - finishing outer diameter - boring inner hole - hobbing (milling spline - surface quenching - grinding outer diameter (smaller requirements for product size tolerance, roughness requirements Smaller. Determine whether it is quenched or not according to the surface requirements of the product) .



Nine

Magnetic particle inspection or fluorescent powder inspection

Whether there are surface and inner hole cracks after surface quenching.



Ten

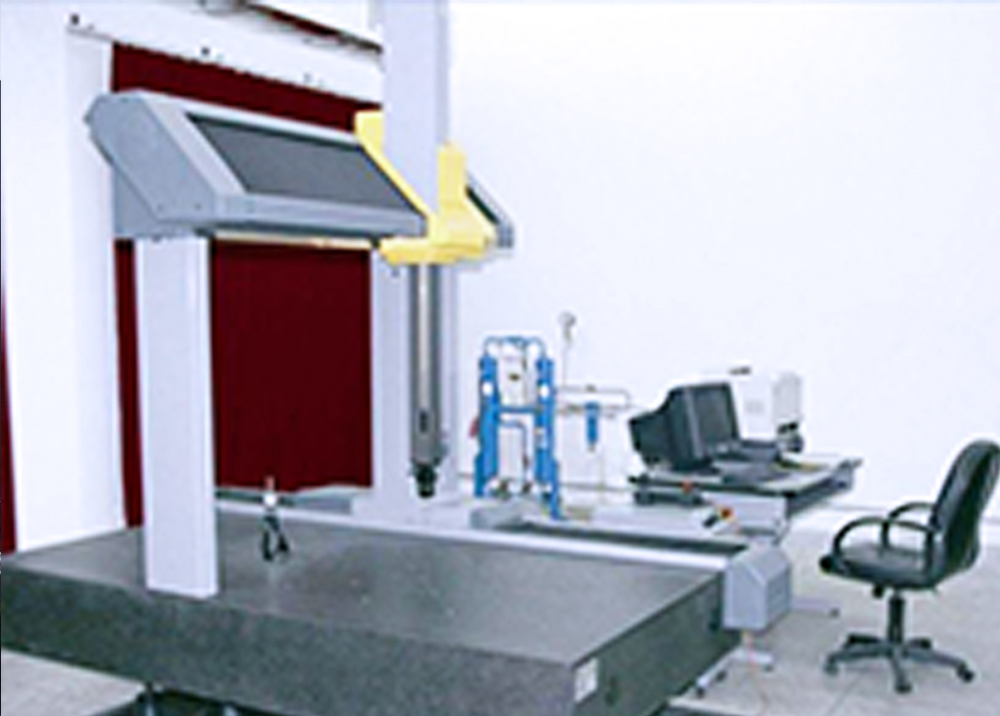

Inspection

After the above processing, check whether the product conforms to the size specified in the drawing, and each of the above steps basically has a semi-finished product inspection spot check (semi-inspection)



Eleven

Magnetic particle inspection or fluorescent powder inspection

Whether there are surface and inner hole cracks after surface quenching.
